Solar installation photo diary
Solar panels installation picture diary from a Solartwin solar hot water installation in York, England. Arriving after breakfast, the solar panel installers finished before 3.30pm, with minimal disruption.
  |
||||
 8 am |
 |

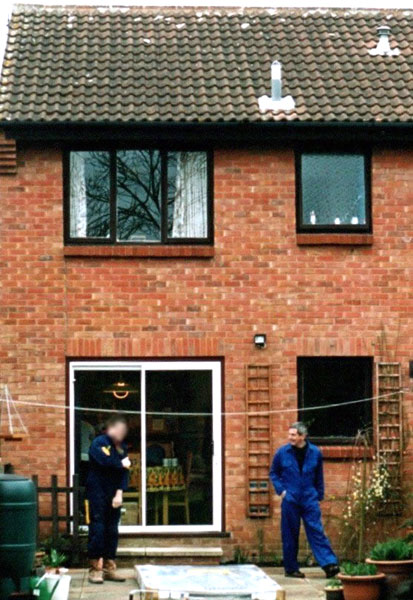

Welcome to the York solar home installation, a picture of the house before the solar panel installation. | ||
    |
||||
 9 am |
 |
Solar thermal panel is unpacked and ready for assembly. | ||
|    |
||||
|
9.20 am |
 |
Solar photovoltaic panel which collects solar energy to power the variable speed solar pump is attached to the collector panel. | ||
|    |
||||
|
9.40 am |
 |
The bracket which securely supports the main 2.8 sqm solar thermal panel is ready for attachment | ||
|    |
||||
|
11 am |
 |
The thermal solar panel’s support bracket is securely bolted to the roof. | ||
|   |
||||
|
11.30 am |
 |
The solar hot water pipe holes are carefully drilled into the roof. | ||
|     |
||||
|
1.30 pm |
 |
The solar thermal energy panel is secured to the roof brackets. Time to connect the two pipes and the pump inside the house. | ||
|     |
||||
|
3 pm |
 |
With the solar roof panel fully installed the solar water heating system (as a whole) is checked for commissioning. | ||
|  |
||||
|
3.30 pm |
 |
Thermal solar panel and PV pumping system fitted and finished in time for afternoon tea! | ||
